• Carriage House Collection

    Tough. Dependable. Long-Lasting. Few doors in your home get more use than your garage door—it truly is the biggest door in your house.

    More than any other door, it needs to work dependably and stand up to the elements for years on end. Built to meet these challenges—and look good doing it—C.H.I. garage doors give you a wide range of options that fit your home's individuality and help you maintain your investment in it.




    Call Locally for New Orleans Garage Door Service:


    View Our Internet Specials


    C.H.I. Overhead Doors

    Carriage House Collection

    Technical Data

    • Door sections are formed from 27-gauge exterior and 27-gauge interior galvanized draw quality steel
    • Section joints are roll-formed into a tongue-and-groove design which produces a superior weather seal
    • 1-13/16" polystyrene insulation, glued on both sides
    • Extra-heavy paint system consists of .25 mil. primer with rust inhibitor and a .75 mil. coating of baked-on polyester paint in your choice of white, almond or sandstone
    • Long-lasting rollers assure consistent, efficient operation
    • Bottom weather seal utilizes an aluminum retainer and extruded virgin vinyl
    • Concealed steel plates run continuously from top to bottom of each section for fastening hardware
    • Extension or torsion springs are individually computer-calibrated to lift your door
    • Hinges are stamped from galvanized steel in a "wide body" pattern for greater stability and longer life
    • Exterior decorative hardware includes 4 hinges, 2 handles and pop rivets for mounting to face
    • Double sided steel doors are 2" thick
    • R-value 8.07

    Door Insulation

    Polystyrene insulation is secured in place with a urethane adhesive to increase structural integrity. The front and back skins are locked together in a tongue and groove design for years of worry free protection.


    5283
    R-value - 8.07

    5283

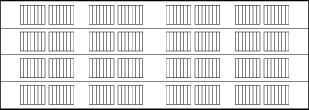

    All-Steel Sandwich Carriage House Door

    Replicating the natural beauty of wood - the 5283 presents the visual distinction of a wood carriage house door while offering years of maintenance free service. The added benefits of a double-sided steel door with polystyrene insulation will offer protection against the natural elements while adding structural integrity to the door. Available in three designer colors and numerous window designs, the 5283 will provide direct curb appeal and add value to your home for years to come.

    5283


    8' wide

    9' wide

    10' wide

    12' wide

    14' wide

    15' wide

    16' wide

    17' wide

    18' wide

    20' wide

    AVAILABLE COLORS

    Refer to samples at your local C.H.I. Distributor for exact color match.

    White swatch

    WHITE

    White swatch

    ALMOND

    White swatch

    SANDSTONE


    WINDOW INSERTS

    Stockton

    Madison

    2-2 Piece Arched Stockton

    2-2 Piece Arched Madison

    3 Piece Arched Stockton

    3 Piece Arched Madison

    4 Piece Arched Stockton

    4 Piece Arched Madison

    Cascade



    HANDLES

    Standard

    Wrought Iron



    HINGES

    Standard

    Wrought Iron



    DESIGNER LITES

    All Designer Lites are either transparent or semi-transparent.

    Plain

    Glue Chip
